Description

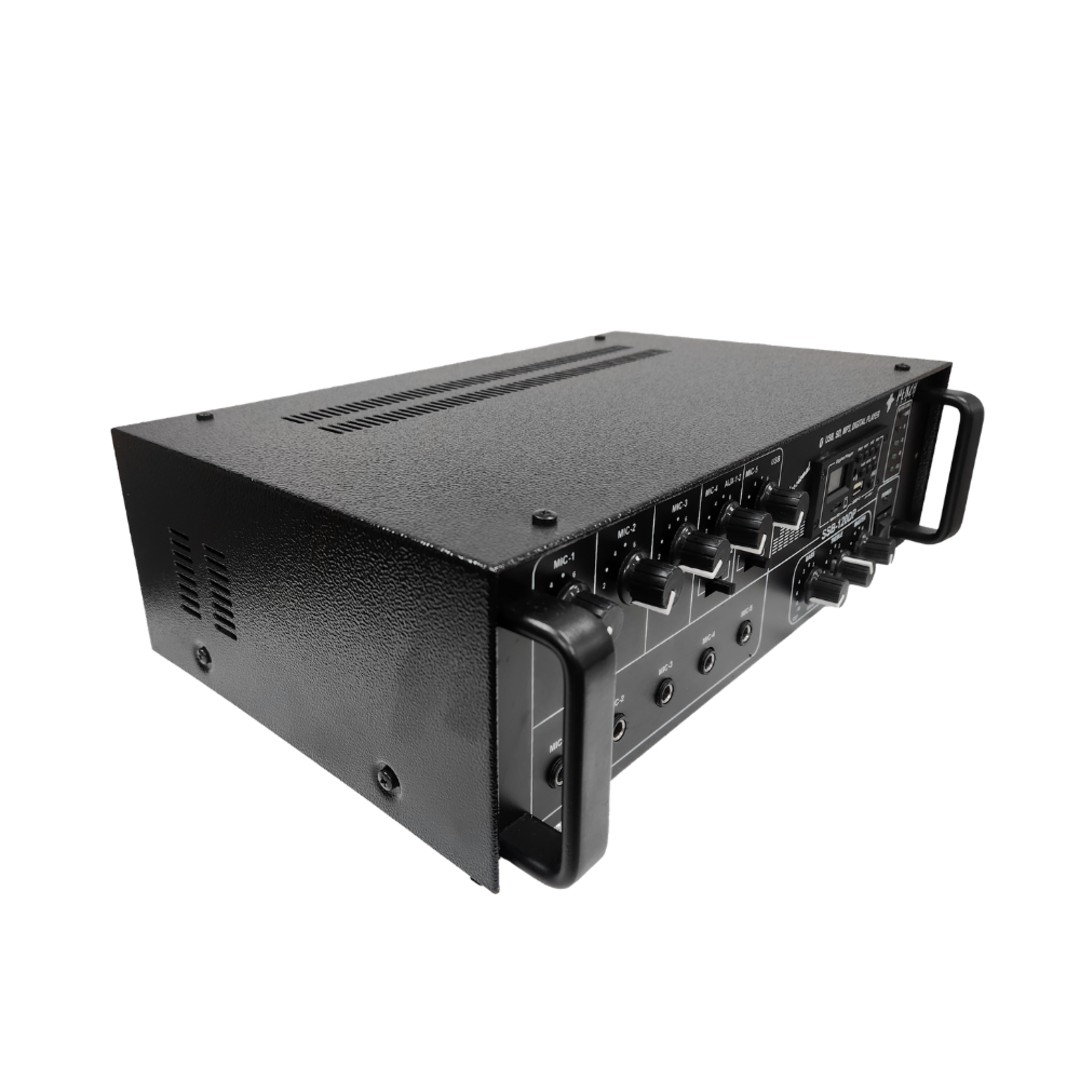

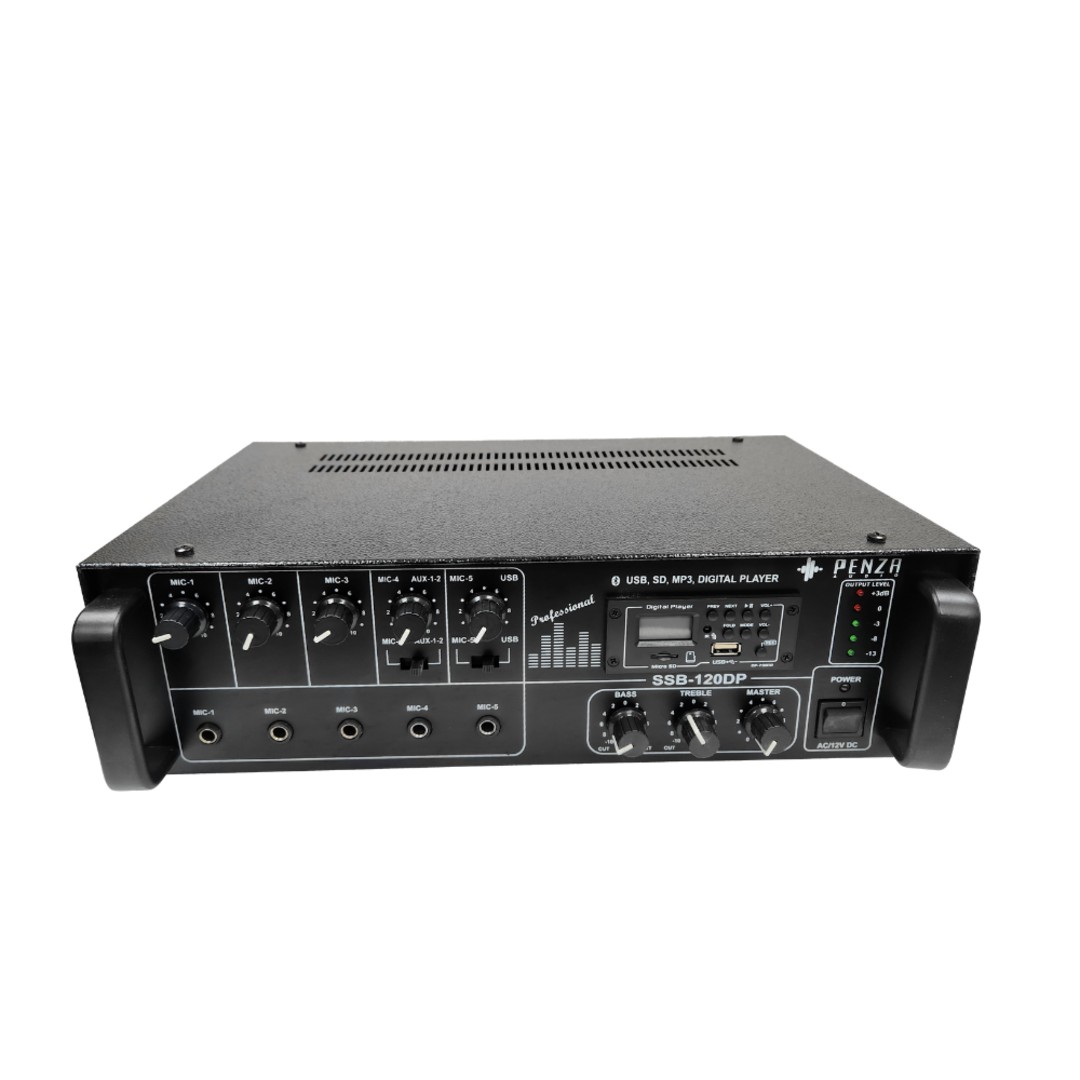

The SSB-120DP is a 120 W RMS (≈160 W max) PA mixer amplifier designed for public address and sound reinforcement systems. It’s suitable for medium-sized venues such as halls, classrooms, shops, offices, and worship spaces. It combines multiple microphone and audio inputs with a built-in MP3 digital player (USB/SD/MMC) and flexible power options. Most specs match standard SSB-120DP models made by Ahuja Audio, and products sold under the PENZA label typically follow these well-established specifications.
- 5 Mic & 2 Aux Inputs. With built-in Digital Player & Bluetooth Connectivity.
- Line output for connecting to a Booster Amplifier and Preamplifier Output for recording the program.
- Cut and Boost type Bass & Treble controls.
- Instant transfer to DC power (Car Battery) if AC power fails.
- 5 LED array for output level monitoring.
| POWER OUTPUT |
|
|
|
| TONE CONTROL |
|
BASS, TREBLE |
|
| INPUT CHANNELS |
|
| 7 x Mic 0.SmV/ 4.7kQ, 2 x AUX l00mV/ 470KQ |
|
|
| DIGITAL PLAYER |
|
MP3 Player with USB, SD Card, BT connectivity |
|
| SIGNAL TO NOISE RATIO |
|
60dB |
|
| SPEAKER OUTPUTS |
|
4 ohms, 8 ohms, 16 ohms 70/ 100 |
|
|
| COOLING |
|
Force Cooling |
|
| FREQUENCY RESPONSE |
|
50-15,000Hz |
|
| POWER SUPPLY |
|
| 220N240V, 50/60Hz, DC:24V (2x12V Car Battery) |
|
|
| DIMENSIONS |
|
|
|
| WEIGHT |
|
12.00 KG |
|
|
|
|
|
