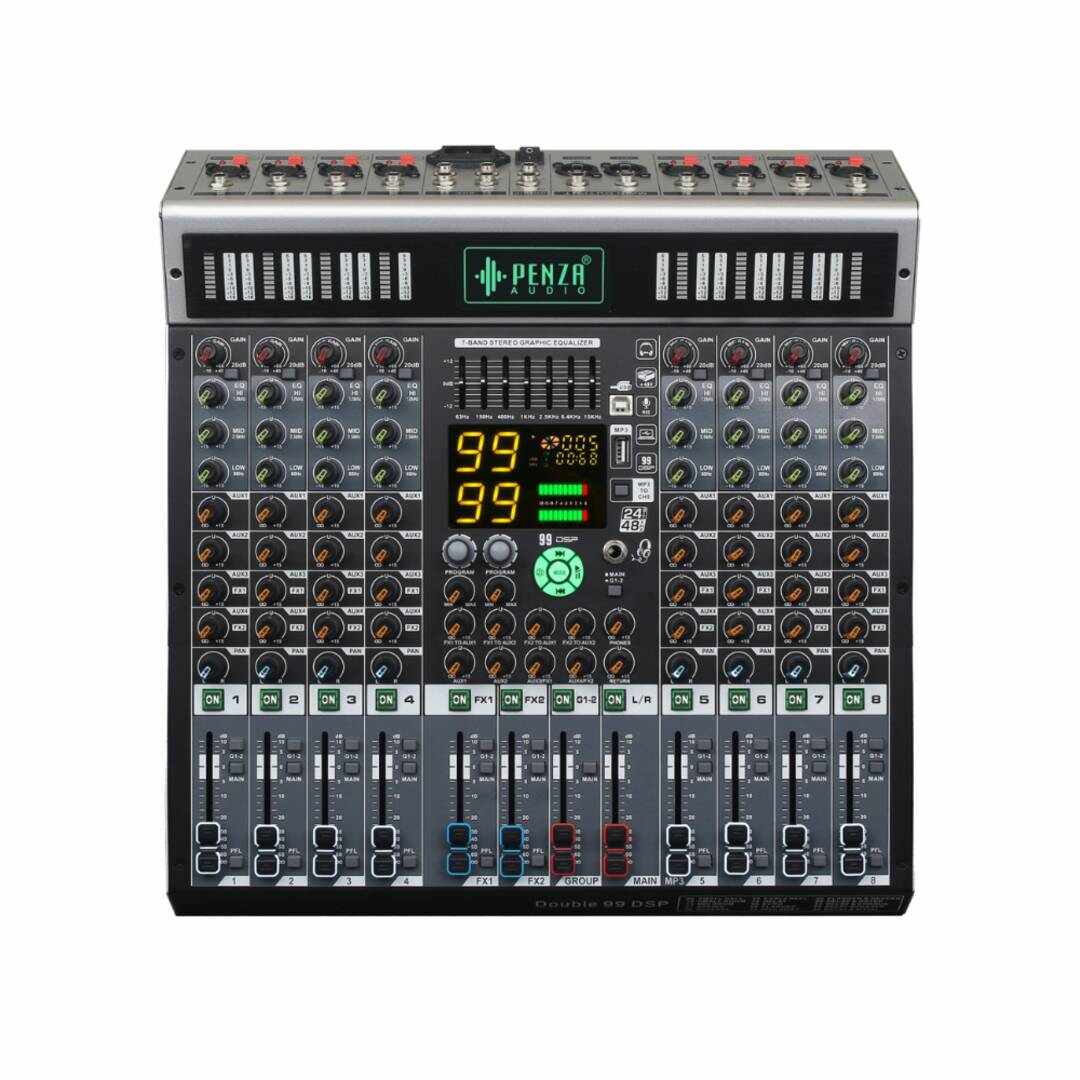

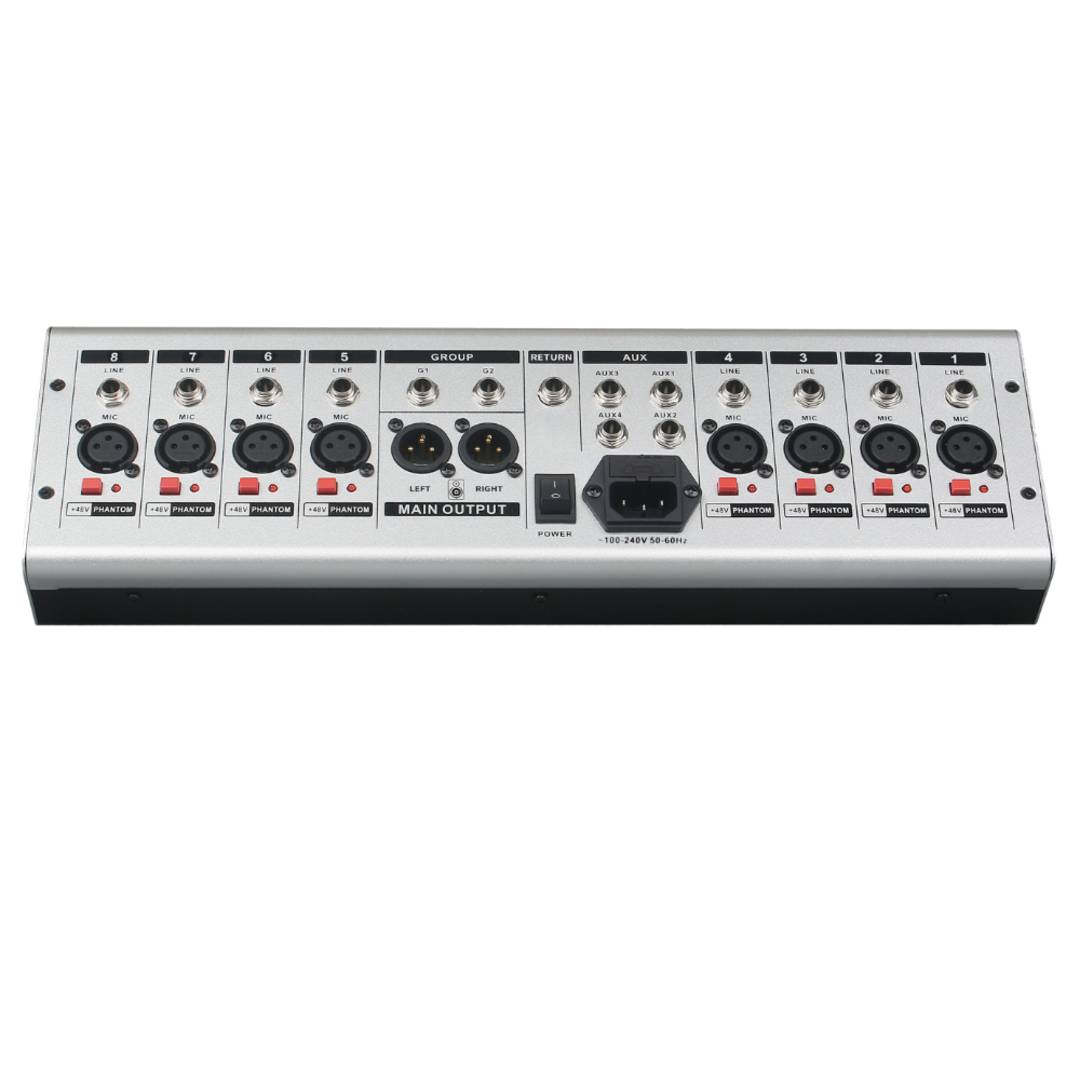

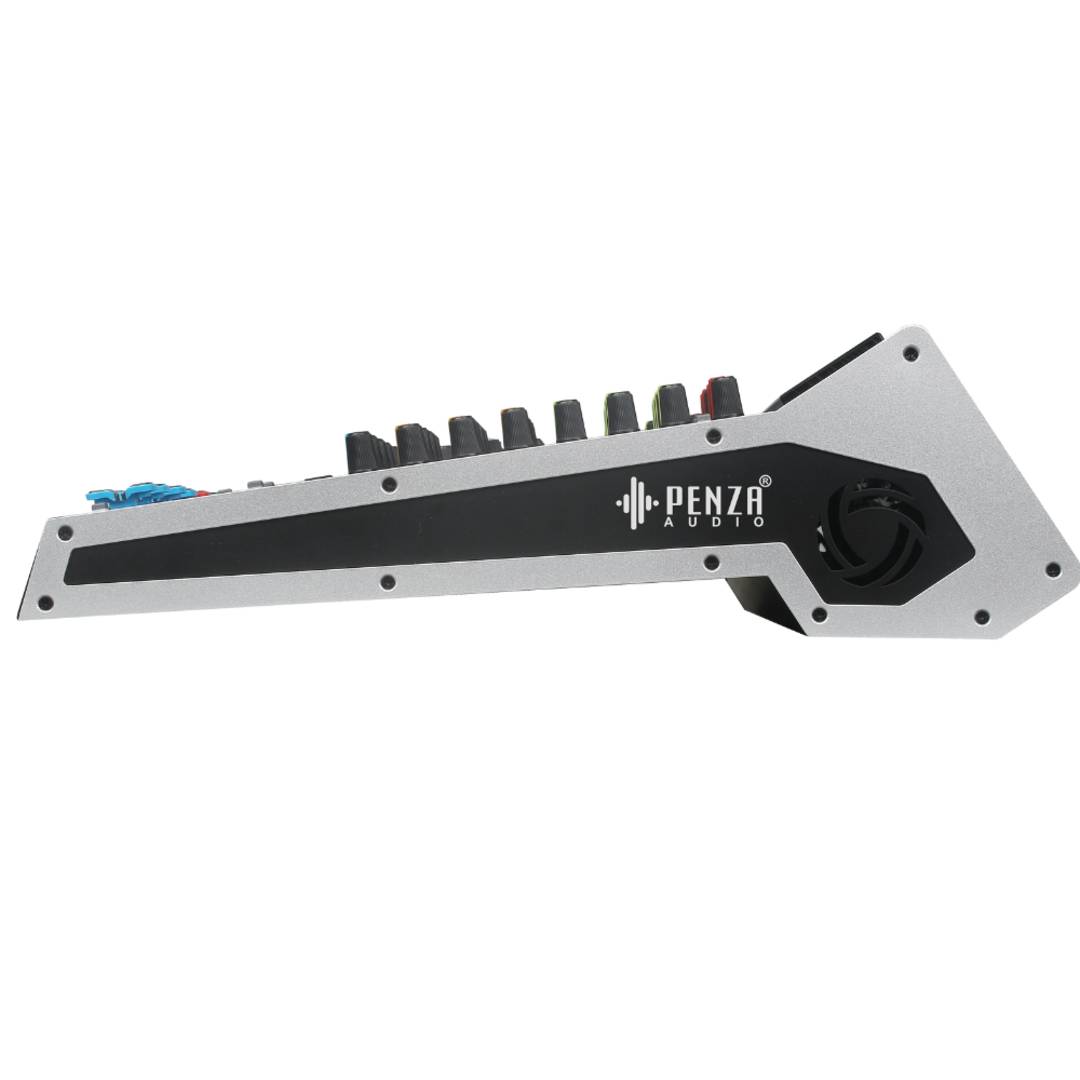

The TL-8 Professional Audio Mixer is a compact and versatile 8-channel mixing console designed for studios, live performances, karaoke systems, events and public-address applications. It features 8 microphone inputs, a 7-band channel EQ, dual 99 DSP effects, Bluetooth connectivity, MP3 playback and USB recording. Its easy-to-use controls and durable design deliver reliable, professional-quality sound.
| Specification | Details |
|---|---|
| Model No. | TL-8 |
| Input Channels | 8 input channels |
| Mic Input (Impedance/Gain) | 2 KΩ Balanced / 65 dB, 1 KΩ Unbalanced / 65 dB |
| Line Input (Impedance/Gain) | 20 KΩ Balanced / 45 dB, 10 KΩ Unbalanced / 65 dB |
| PAD Fixed Attenuation | -20 dB |
| Distortion | <0.1% |
| Frequency Response | 25 Hz – 20,000 Hz |
| 3-Band British EQ – High | Gain +15 dB / -15 dB, Frequency 12 kHz (Slope) |
| 3-Band British EQ – Mid | Gain +15 dB / -15 dB, Frequency 4 kHz (Peak) |
| 3-Band British EQ – Low | Gain +15 dB / -15 dB, Frequency 80 Hz (Slope) |
| Level Signal Indication | 1×10-segment LED level meter per channel |
| Level Meter | 2×10-segment dot-matrix LED level meters |
| Built-in Digital Effects | Dual-core digital effects, DSP algorithm, 2×99 presets, Parameter controller |
| USB Audio | 2IN/2OUT, USB 2.0 compatible |
| Maximum Sample Rate | 192 kHz |
| Bit Depth | 24-bit |
| Delay System | Digital Signal Processing, 20–300 ms delay range |
| Phantom Power | +48V, independent control per channel |
| Signal-to-Noise Ratio | >68 dB |
| Power Input Supply | 220–240 V AC, 50 Hz |
| USB Music Player | MP3, Bluetooth, USB |
| Headphone Monitoring | Dual-channel headphone monitoring |
| AUX Auxiliary Output | 3 groups of AUX SEND outputs |
| Return Function Input | 1 group RETURN input |
| Group Output | 2 GROUP OUT outputs |
| Stereo Output | Dual-channel MAIN OUT stereo outputs |
| Faders | High-reliability smooth 60 mm stroke faders |
| Dimensions (L×W×H) | 380 × 390 × 125 mm |
| Net Weight | 4.7 kg |
