• 12″ Nominal Diameter
A 12-inch driver size offers a good balance of bass depth and midrange clarity, making it versatile for PA use and sound reinforcement.
• Rated Power Handling ~200 W RMS
Designed to handle approximately 200 W of continuous power from an external amplifier, with higher peak capability for short transients — suitable for medium-power PA systems.
• 3″ Voice Coil
Features a 3-inch voice coil which improves power handling and thermal endurance, letting the driver operate reliably at higher output levels.
• Impedance ~8 Ω
Typical 8-ohm impedance that works well with common PA amplifiers and crossover networks.
• Passive Speaker Design
This driver does not include an internal amplifier and must be paired with a separate PA amplifier and appropriate speaker cabinet or enclosure.
• Mid-Bass Focus
Optimised for low to mid frequency reproduction, making it ideal for both music content and speech in PA setups.

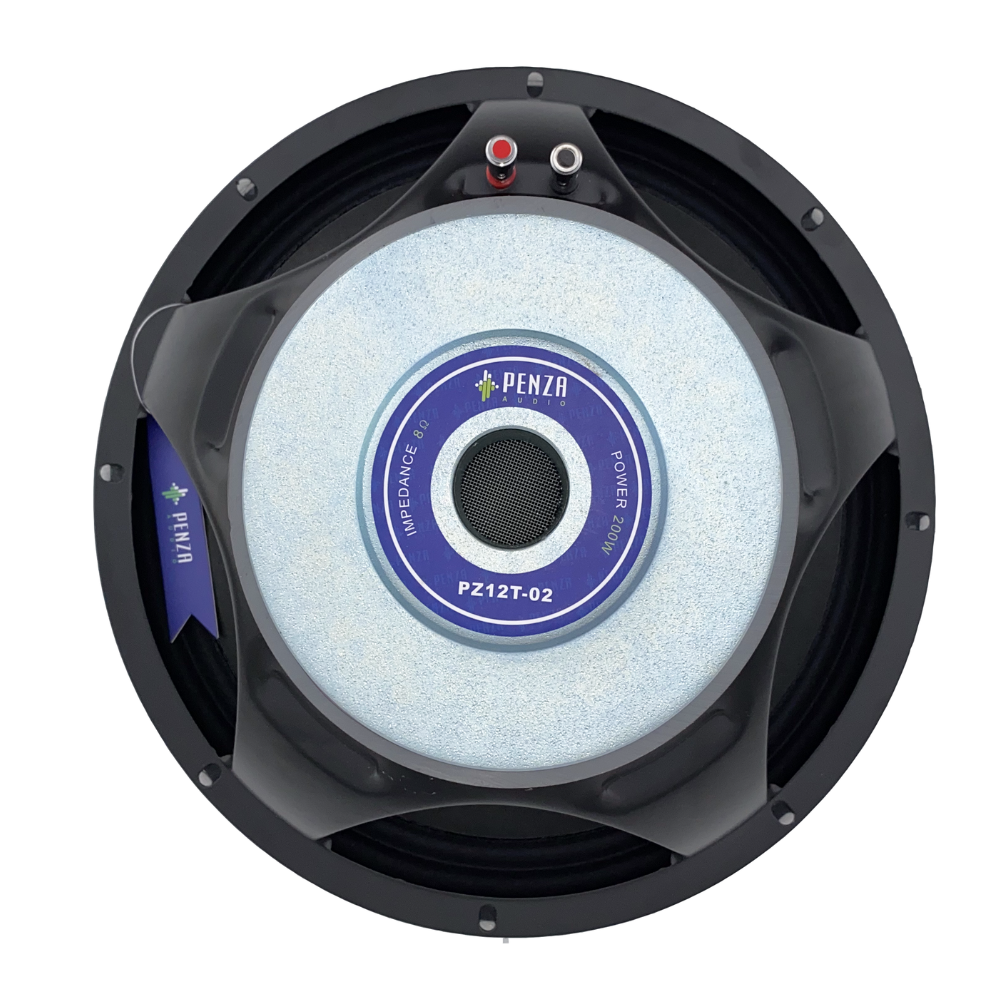

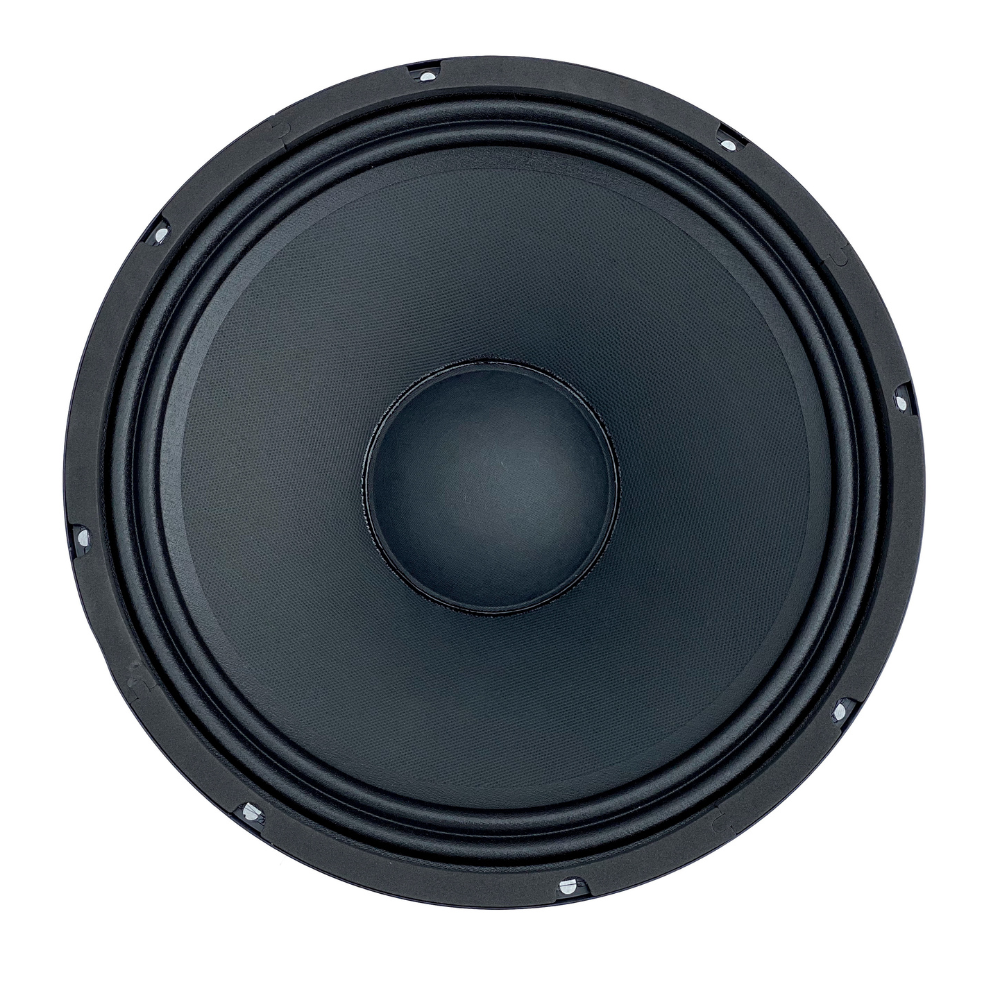

The PZ 12T-02 is a 12-inch professional passive PA speaker driver designed for use in PA speaker cabinets, DJ rigs, live sound reinforcement, events, and medium-to-large-venue audio systems. It’s a woofer/mid-bass driver typically installed in passive PA speaker enclosures, where it is driven by an external amplifier. This type of driver is often used either as a main low/mid speaker or in combination with higher-frequency drivers in a multi-way PA system. It delivers a balance of bass presence and midrange clarity, suitable for music and speech reinforcement.
| RATED POWER | 200W |
|---|---|
| MAX POWER | 400W |
| NOMINAL DIAMETER | 12″ |
| SENSITIVITY | 97dB |
| VOICE COIL DIAMETER | 2.5″ |
| MAGNET SIZE | 165 MM |
| MAGNET TYPE | FERRITE |
| FREQUENCY RANGE | 50 Hz. |
| WEIGHT | 4.10 KG |
