Power Handling
Rated Power: 1200 W RMS — supports continuous high power levels.
Maximum Power: 2400 W peak — handles strong transient peaks.
Physical & Mechanical
Nominal Diameter: 15″ — large woofer for powerful low-frequency output.
Voice Coil Diameter: 4″ — larger coil improves thermal handling and durability.
Magnet Size: 220 mm ferrite magnet — strong magnetic motor.
Weight: ~11.70 kg — solid build quality for professional applications.
Acoustic Performance
Sensitivity: ~95.4 dB — efficient sound output per watt.
Frequency Range: ~45 Hz – 1.7 kHz — covers bass and lower midrange (ideal for pairing with high-frequency drivers).

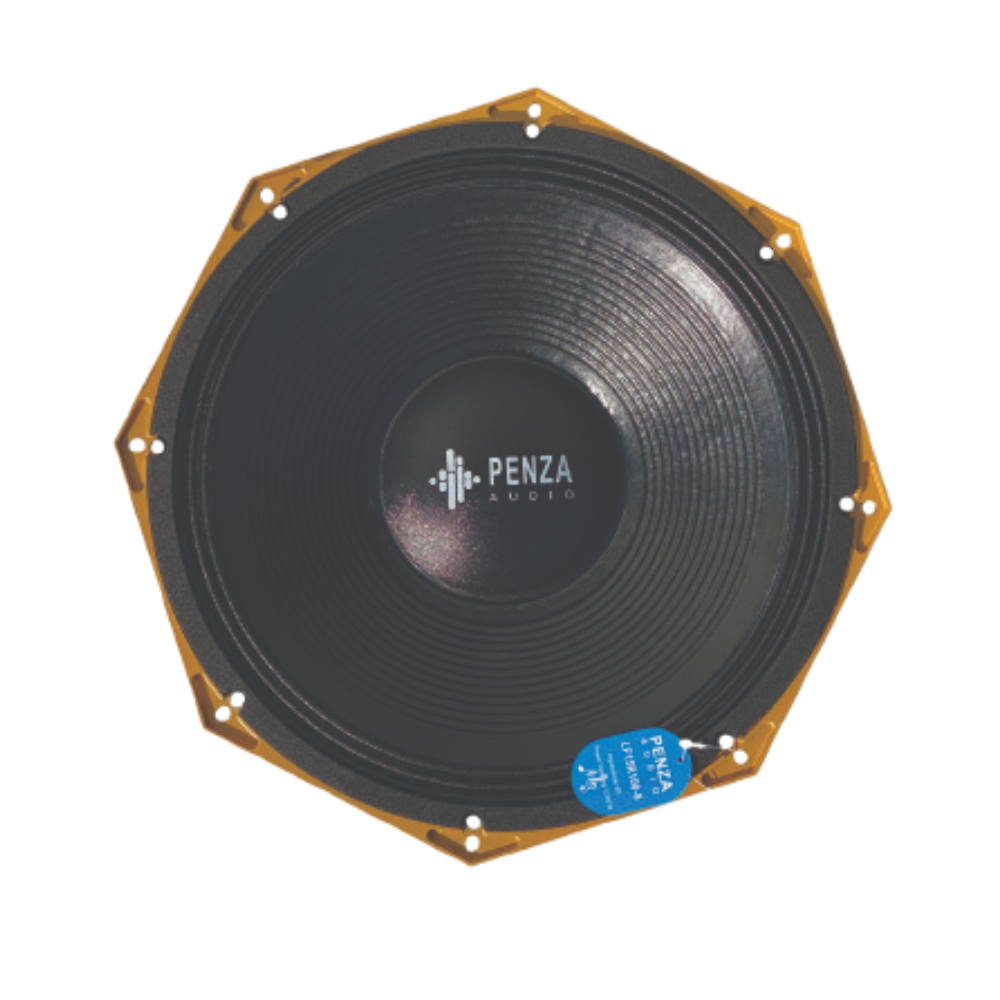

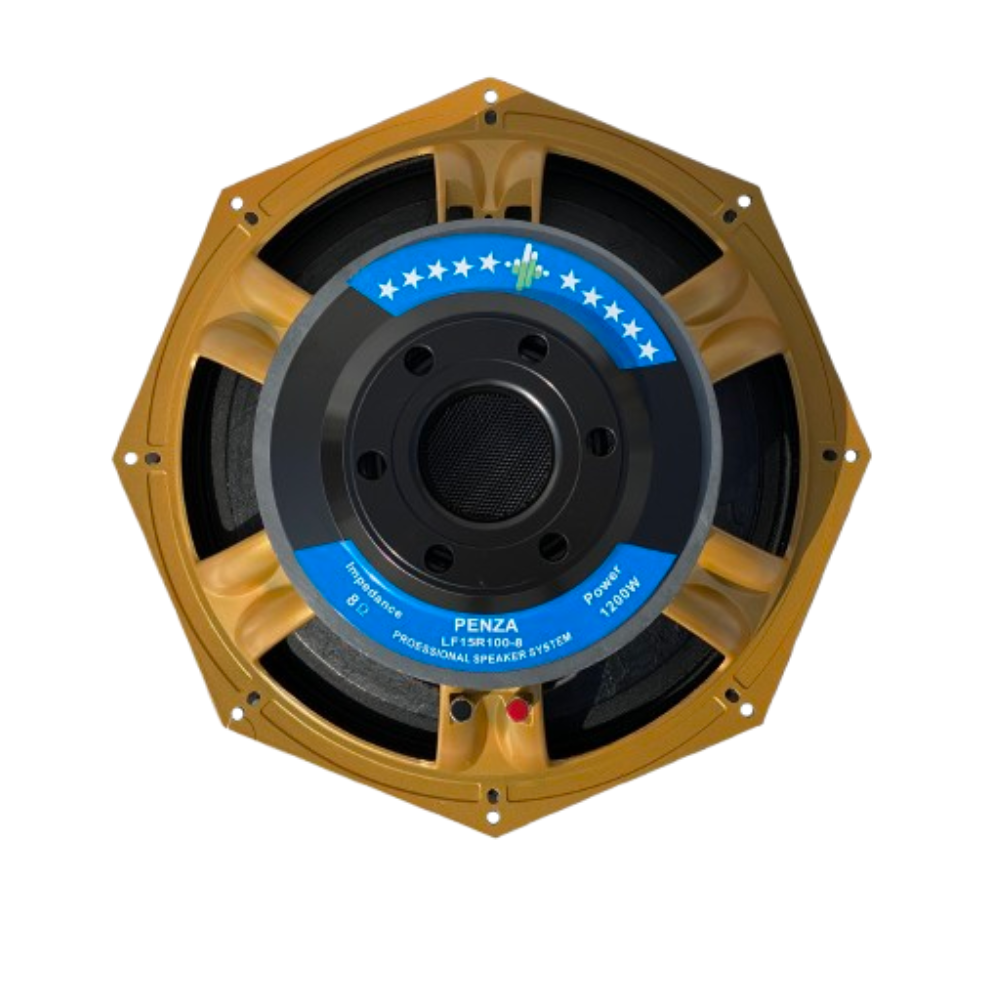

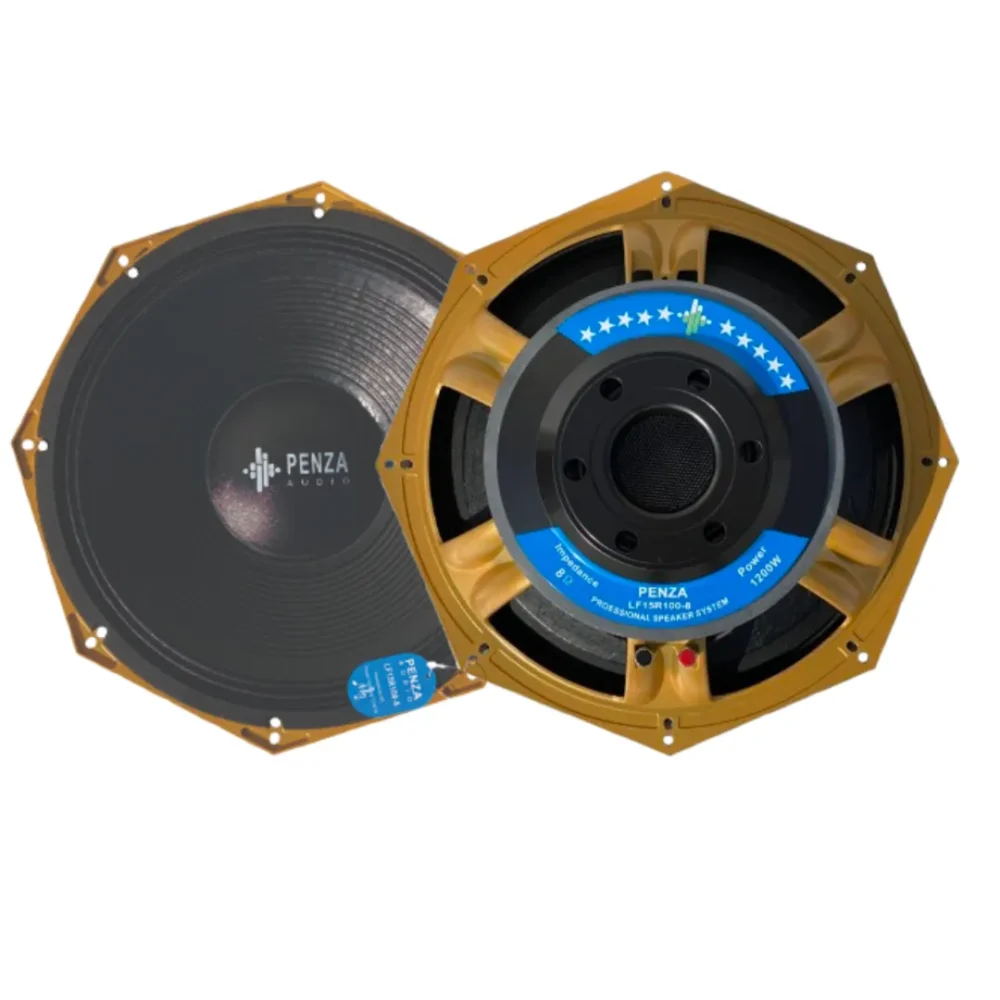

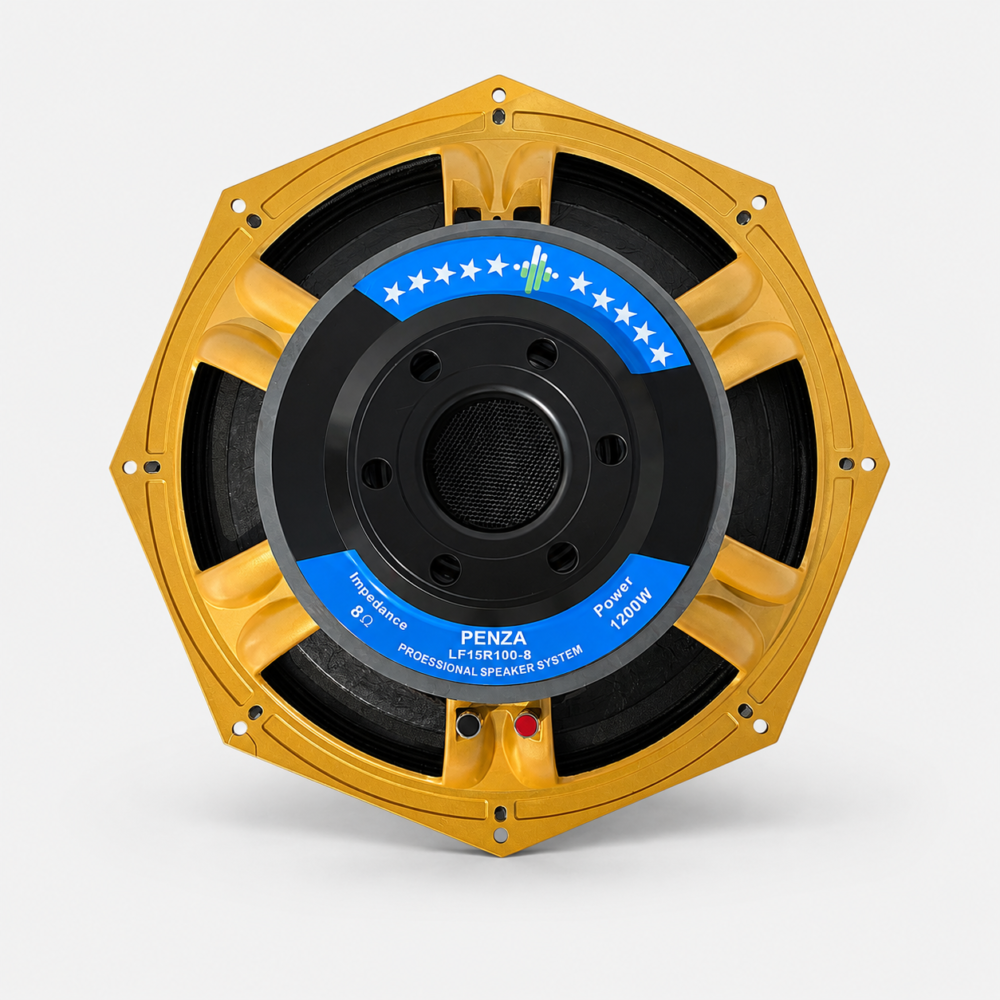

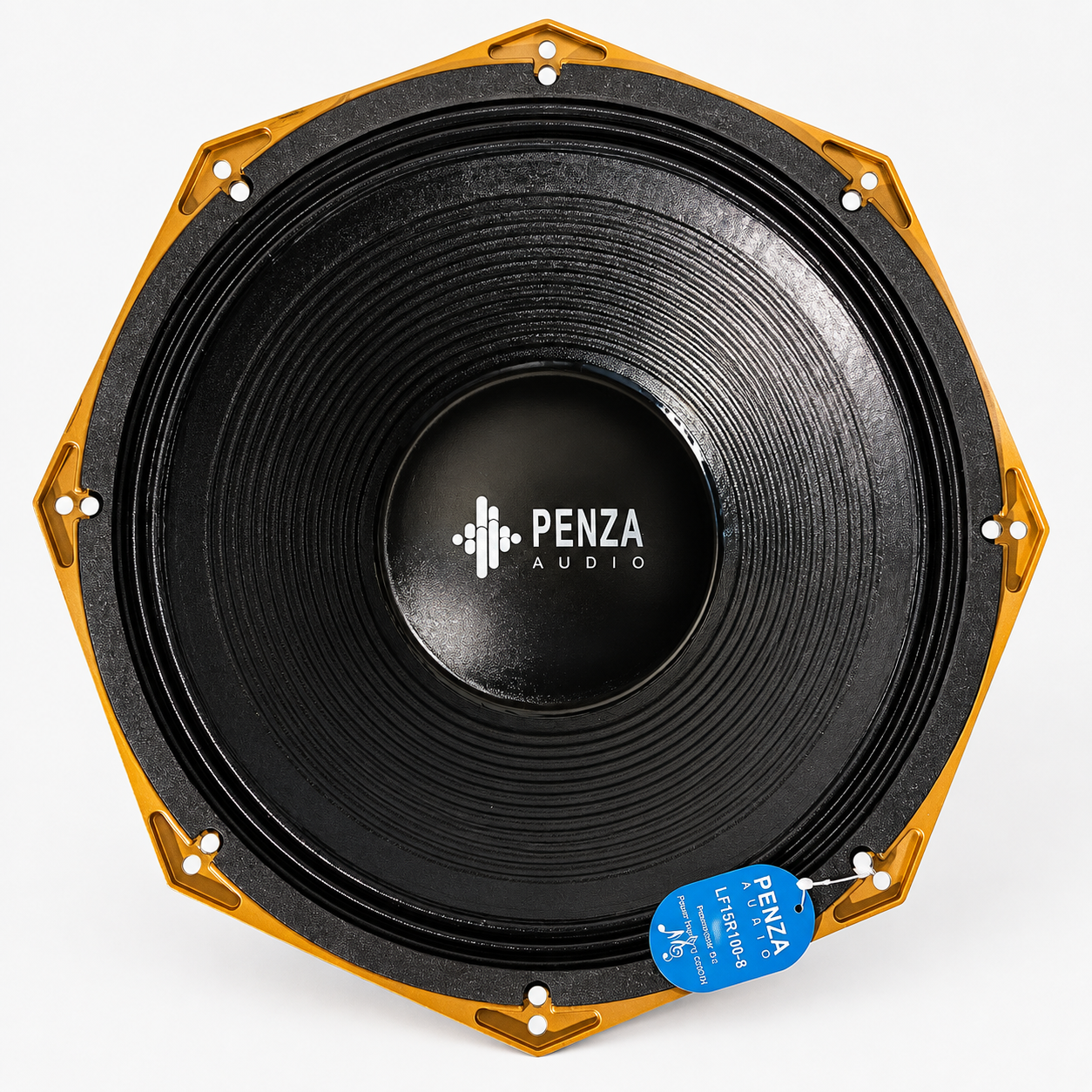

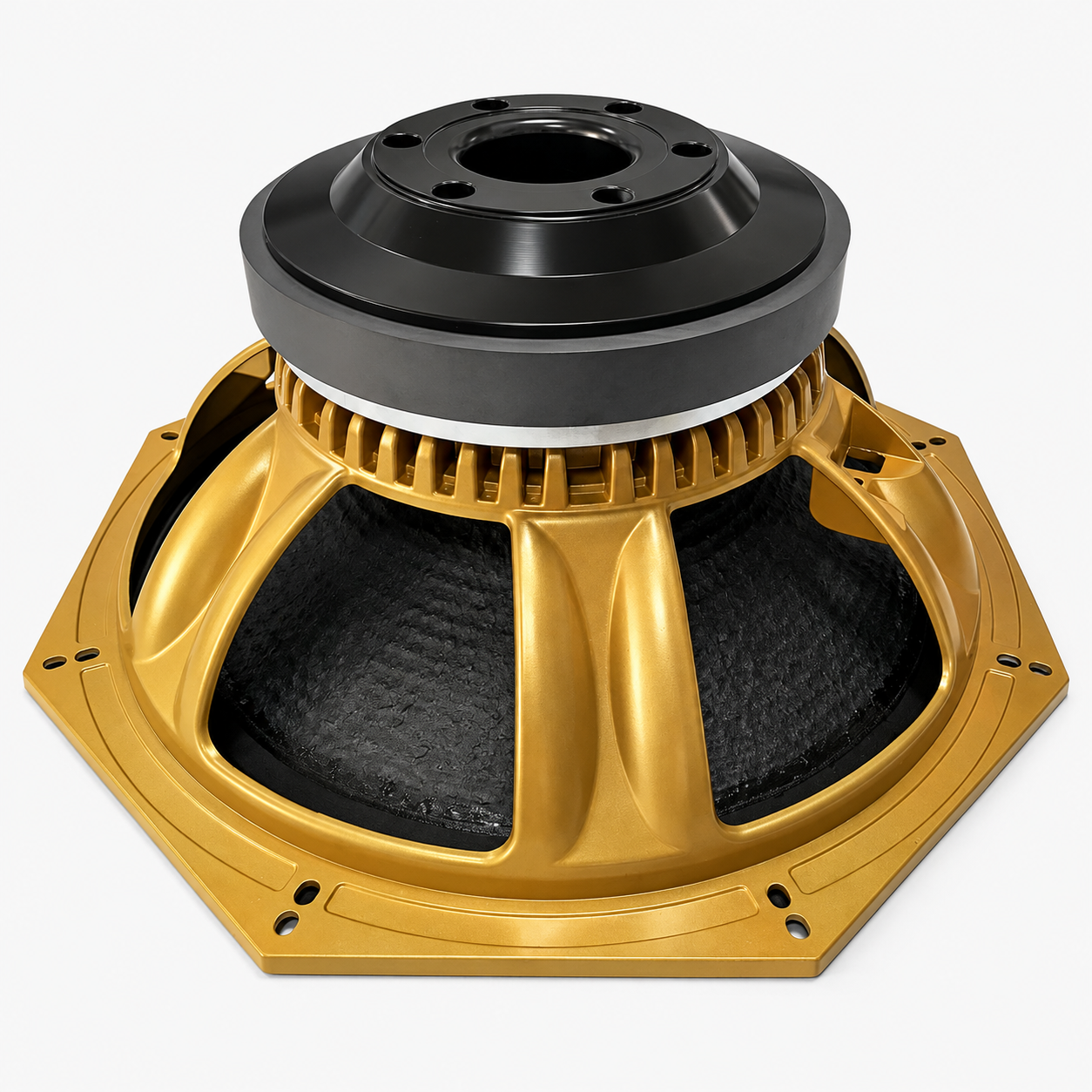

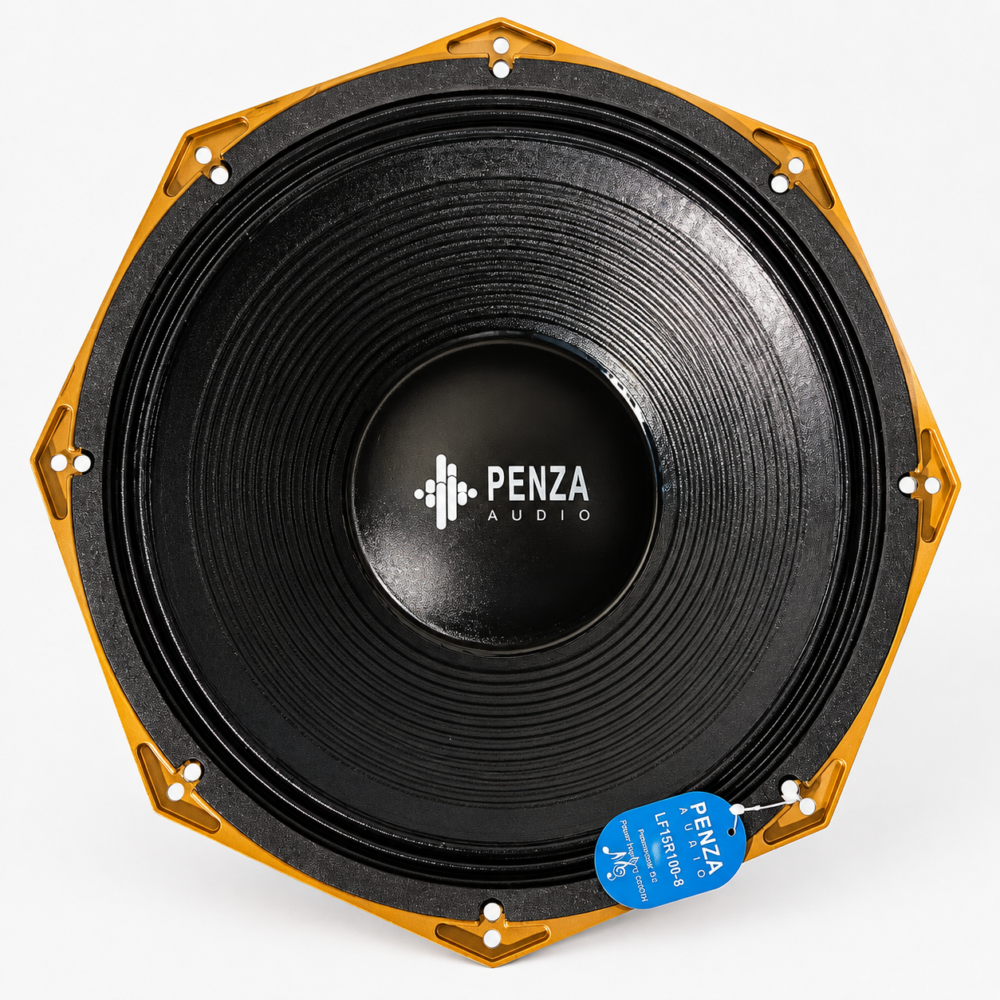

The Penza Professional PA Speaker LF15R100-8 is a high-power 15-inch passive low-frequency (LF) driver intended for professional PA speaker systems. It’s designed for use in custom speaker enclosures or replacement applications where robust low-frequency performance and high output are required. The driver delivers powerful bass and mid-bass reproduction when paired with appropriate crossovers and amplifiers in live sound reinforcement systems, concert venues, DJ rigs, and other pro audio installations.
| RATED POWER | 1200W |
| MAX POWER | 2400W |
| NOMINAL DIAMETER | 15″ |
| SENSITIVI1Y | 95.4 dB |
| VOICE COIL DIAMETER | 4″ |
| MAGNET SIZE | 220 MM |
| MAGNET1YPE | FERRITE |
| FREQUENCY RANGE | 45Hz-l.7KHz |
| WEIGHT | 11.70 KG |
