• 15″ Driver Size
A large 15-inch diaphragm for solid low-frequency and midrange audio reproduction, typical for professional PA use.
• Power Handling
Rated (RMS) Power: ~450 W
Maximum (Peak) Power: ~900 W
This means it can handle significant amplifier power for loud performance without distortion when used in the proper enclosure.
• Sensitivity – ~98 dB
High sensitivity allows the speaker to produce loud sound with moderate power input, making it efficient in PA setups.
• Voice Coil – ~3″ Diameter
A 3-inch voice coil provides good thermal handling and reliability under sustained use at higher outputs.
• Magnet System
Uses a ferrite magnet (~190 mm) for consistent magnetic control and dependable performance.
• Frequency Range Starts ~48 Hz
Capable of reproducing lower bass frequencies down to about 48 Hz, offering impactful bass when mounted in a suitable cabinet.
• Weight – ~7.1 kg
Moderate weight for a 15″ driver, making it easier to integrate into portable or fixed PA cabinets.
• Passive Design
Requires a separate PA amplifier and enclosure (e.g., sealed or ported box) to operate — flexible for custom system designs.

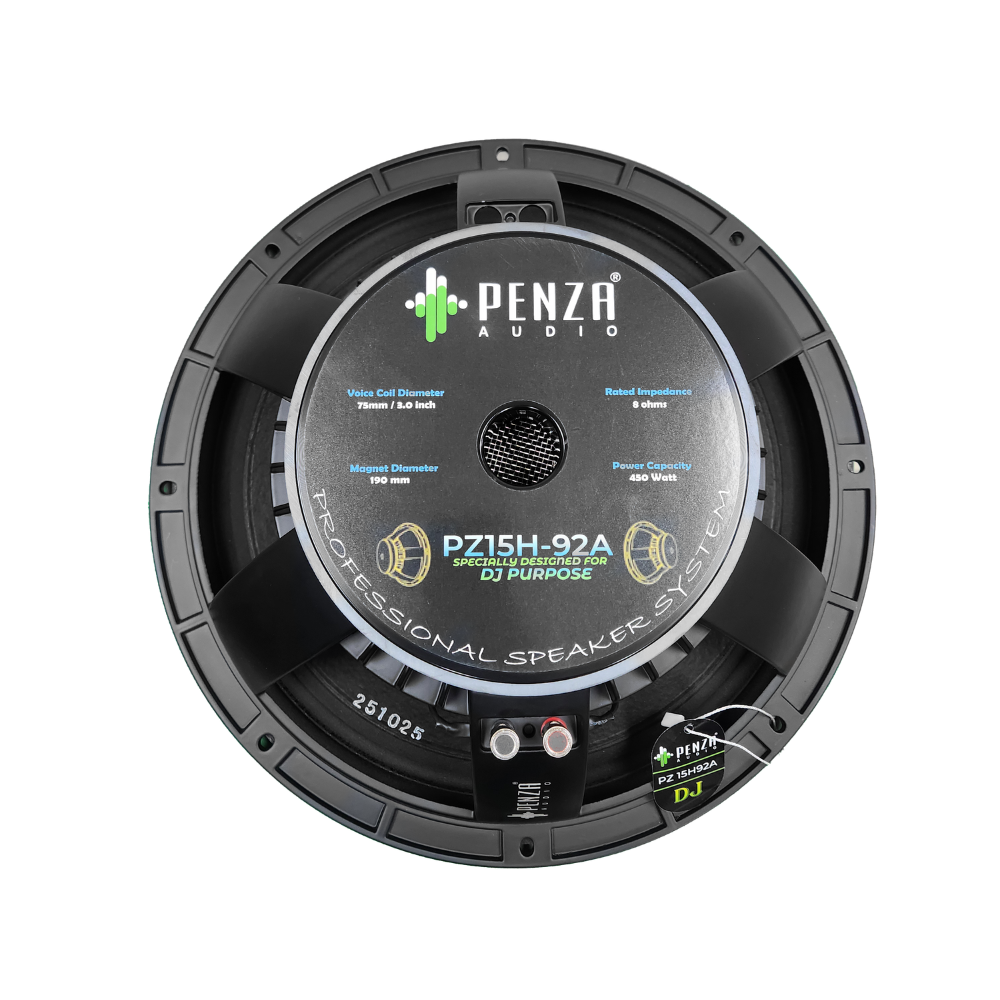

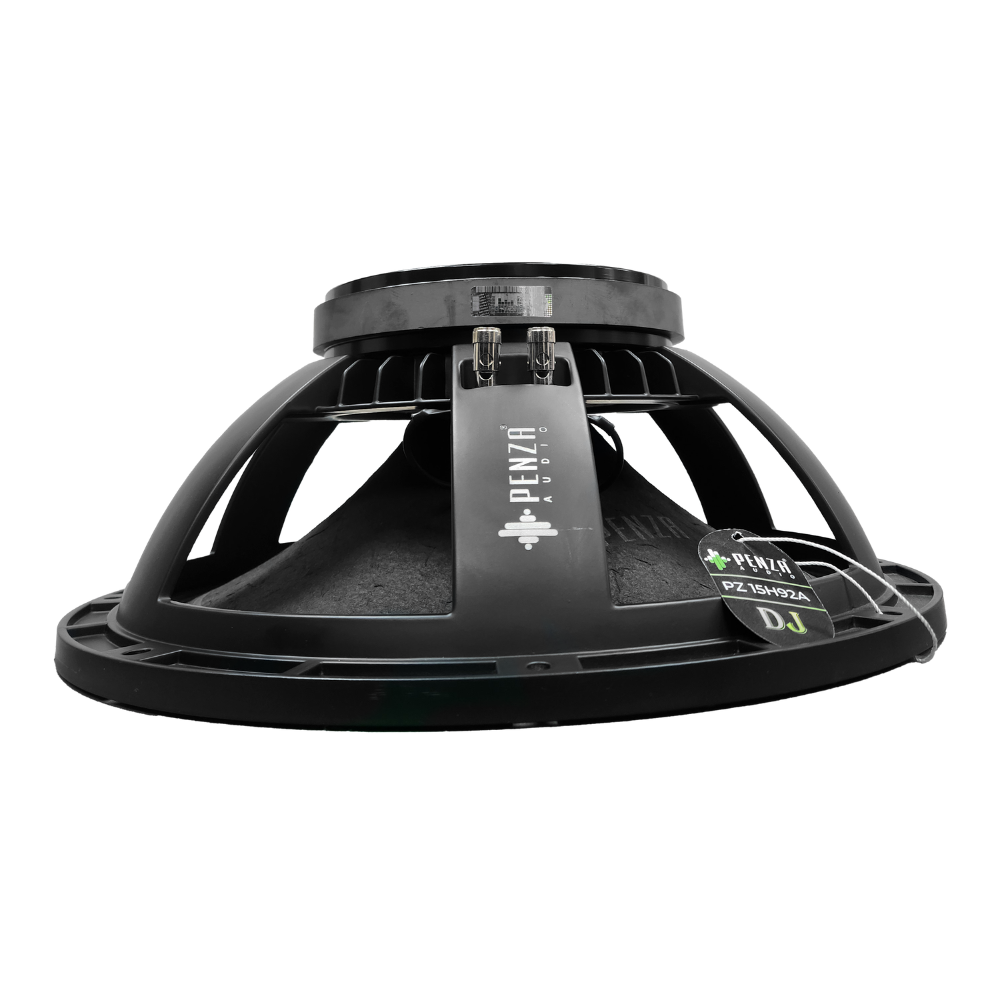

The PZ15H 92-A is a 15-inch passive PA speaker driver designed for professional audio applications, such as PA speaker enclosures, DJ systems, live music sound reinforcement, event sound systems and large venue audio setups. As a passive driver, it needs to be installed in a suitable speaker cabinet and driven by an external amplifier to deliver its rated output. This model focuses on balanced sound with a strong mid-bass response and efficient output, making it suitable for full-range audio when paired with appropriate crossovers and tweeters.
| RATED POWER | 450W |
| MAX POWER | 900W |
| NOMINAL DIAMETER | 15″ |
| SENSITIVITY | 98dB. |
| VOICE COIL DIAMETER | 3″ |
| MAGNET SIZE | 190 MM |
| MAGNET TYPE | FERRITE |
| FREQUENCY RANGE | 48 Hz. |
| WEIGHT | 7.10 KG |
