• 15″ Nominal Diameter
A 15″ driver provides solid bass and midrange output, popular in PA systems for music and speech.
• Passive (Non-Powered) Design
This driver does not include its own amplifier — it must be driven by a separate external PA amplifier for power and control.
• Woofer / Low-Mid Frequency Focus
Optimized for frequencies from the lower bass up through midrange, delivering punchy, impactful sound when mounted in a suitable speaker cabinet.
• Typical Power Handling (~400 – 800 W RMS)
Most 15″ PA woofer drivers handle power in this range, giving good output without distortion when matched with a proper amplifier.
• Sensitivity (~95 – 98 dB)
High sensitivity lets the driver produce loud sound with efficient use of amplifier power, ideal for PA and live sound systems.
• Standard Impedance (~8 Ω)
Works well with typical PA amplifiers and passive crossover networks.
• Voice Coil (≈3″ or More)
A larger voice coil supports better power handling and heat dissipation, improving reliability under heavy use.

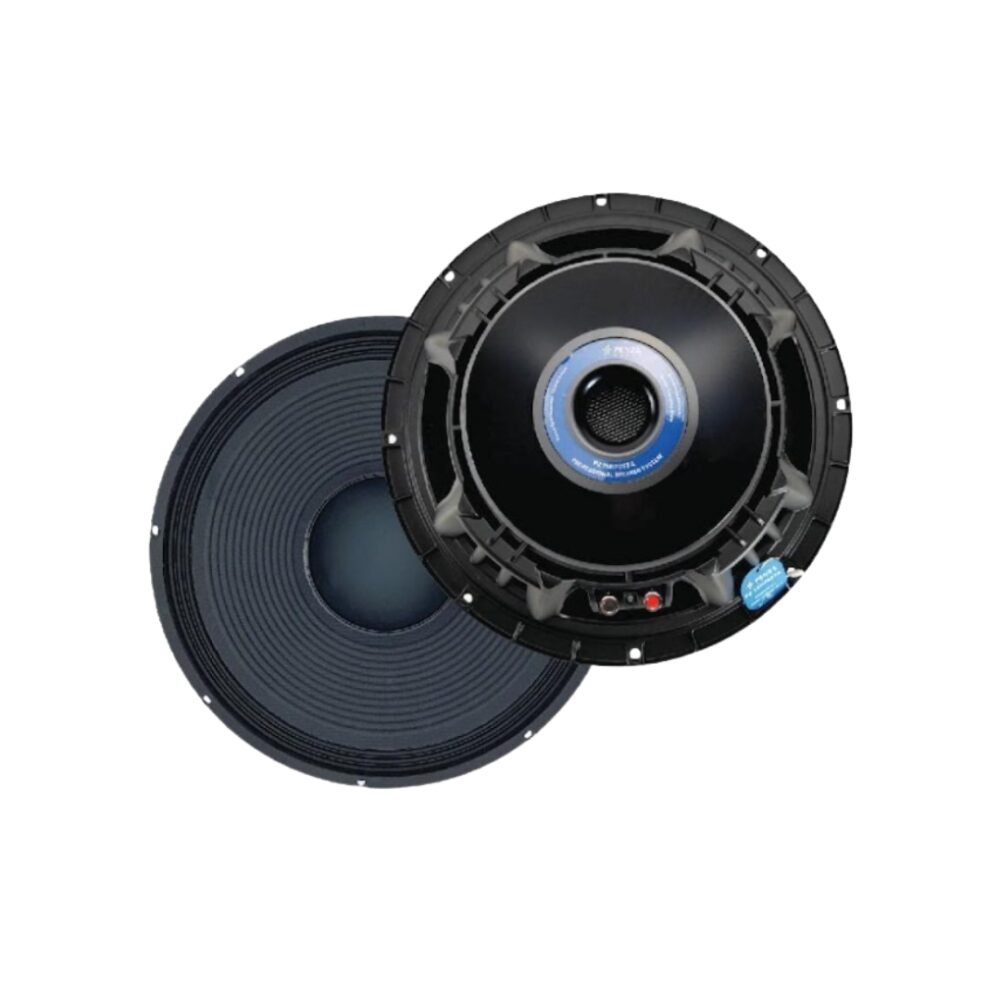

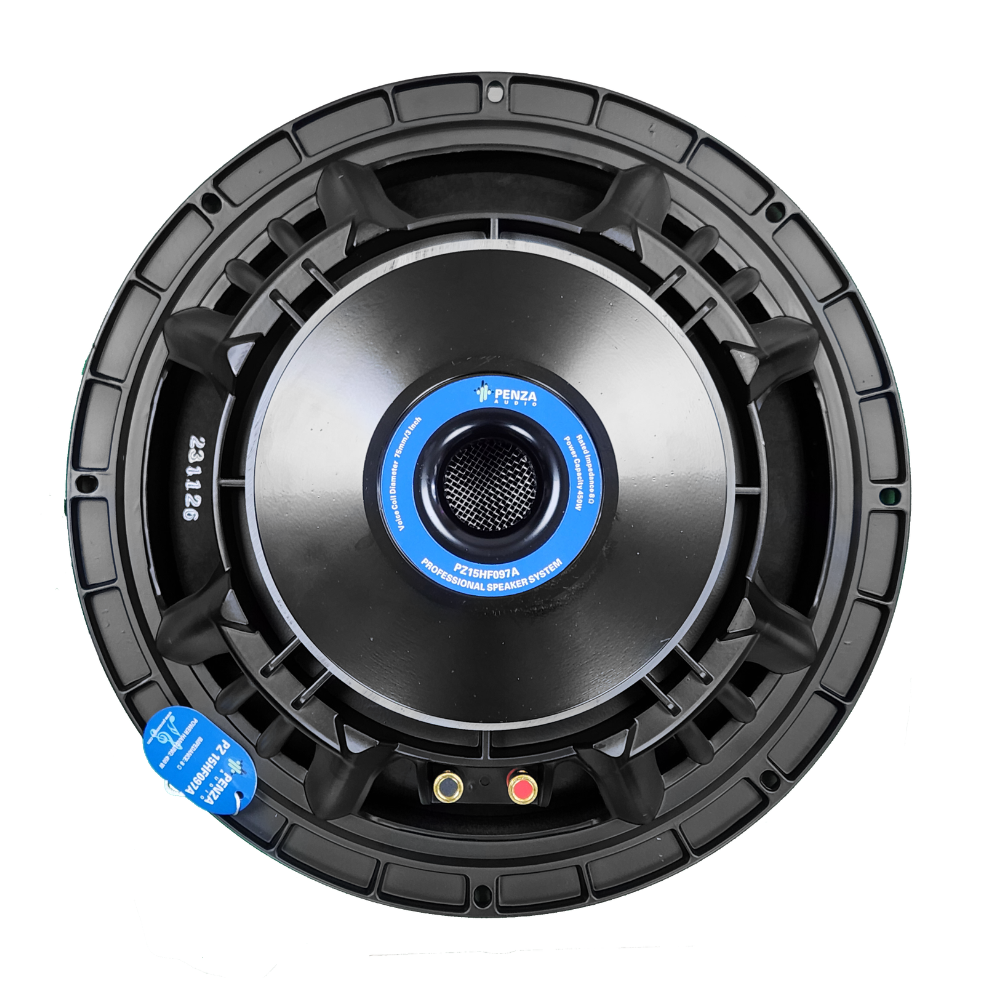

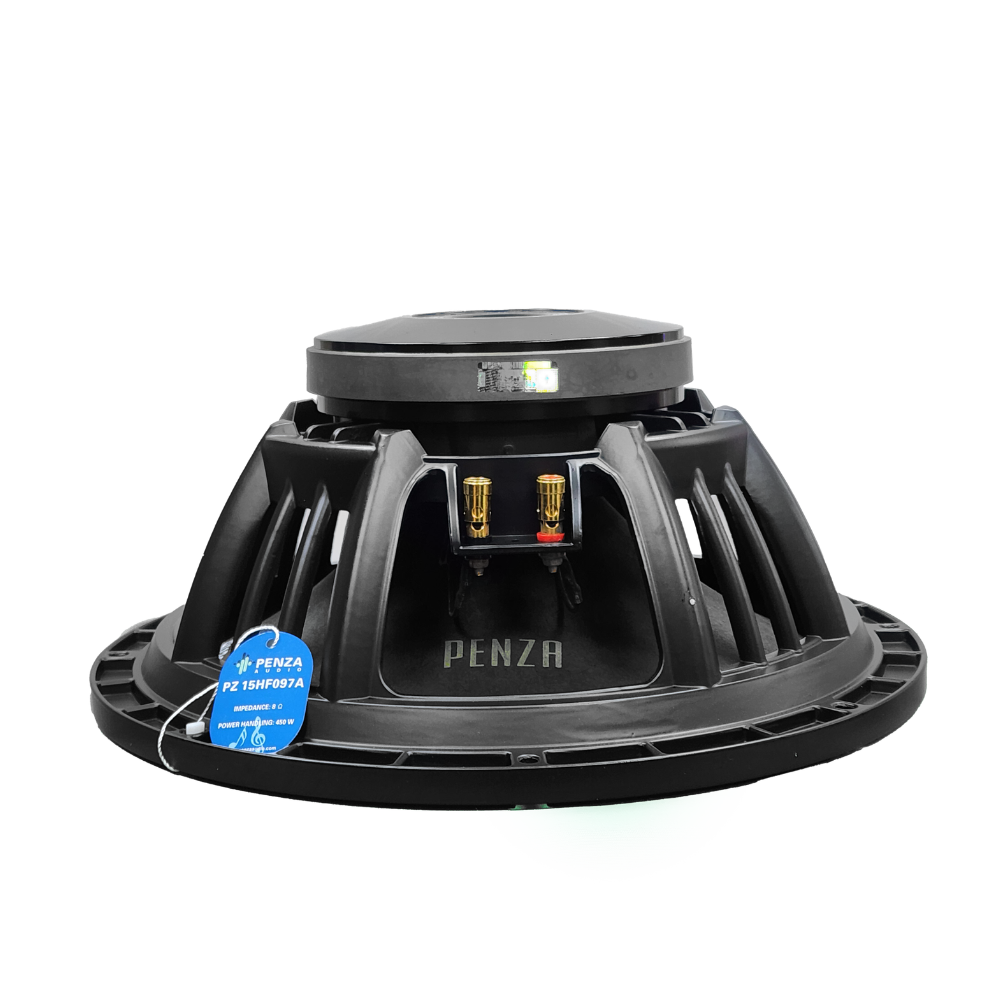

The PZ 15HF-097A is a 15-inch professional passive loudspeaker driver designed for PA (public address) and sound reinforcement systems. Like other PZ15… models, this is a woofer/mid-range driver intended to be installed inside a speaker enclosure (sealed or bass-reflex) and used with an external amplifier. It would be commonly employed in DJ PA systems, live event speakers, concert fills, stage monitors and large-venue audio rigs to deliver mid-bass and lower-midrange frequencies with strong output and good efficiency.
| RATED POWER | 450W |
| MAX POWER | 900W |
| NOMINAL DIAMETER | 15″ |
| SENSITIVITY | 95dB. |
| VOICE COIL DIAMETER | 3″ |
| MAGNET SIZE | 190 MM |
| MAGNET TYPE | FERRITE |
| FREQUENCY RANGE | 52 Hz. |
| WEIGHT | 9.29 Kg. |
